Stable Power
Absolute Control

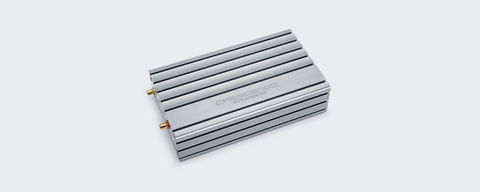

REVOLUTION 5A1 v2 AMPLIFIER
The Revolution 5A1 v2 adds a Competition Switch and Sanken transistors for more resolution and body. Its 450 watts of stable output across any impedance load means reference-grade control whether you're running a single sub or a complex configuration. More resolution, more body, more control.
ESSENTIAL FACTS
Competition-Ready Features
New Competition Switch and gain bypass for uncompromising signal purity.
Sanken Transistors
Premium output devices for a quieter, blacker background.
450W at Any Impedance
Impedance-independent power with >500 damping factor for total control.
SPECIFICATION
Product Name
Crescendo Revolution 5A1 v2
Product Type
Weight
Dimensions (W x D x H)
Cosmetic Appearance
Amplifier Design
Number of Channel
Power at 4 Ω Mono (14.4 V)
Power at 2 Ω Mono (14.4 V)
Power at 1 Ω Mono (14.4 V)
Minimum Speaker Load
Input Sensitivity
Input Impedance at 1 kHz
Frequency Response (-3 dB)
Total Harmonic Distortion (1 W, 20 Hz - 20 kHz)
Signal to Noise Ratio (rated power)
Signal to Noise Ratio (CEA - 2006, 1 W)
Effective Damping Factor (20 Hz - 20 kHz)
Filter
Fuse
Protection
Power Amplifier
2.3 kg
270 mm x 150 mm x 60 mm
Brushed Grey
Class AB
1
450 W per Channel
450 W per Channel
450 W per Channel
1 Ω
7.5 V to 1.5 V
25 kΩ
4 Hz - 80 kHz
0.04 %
122 dB
95.4 dBA
> 500
No
2 x 30 A
Thermal and short circuit
