REVOLUTION 1 SPEAKER SERIES
6.5-inch component car speakers featuring a lightweight paper cone for natural midrange warmth and a 28mm fabric dome tweeter for smooth, detailed highs. Built for sound quality and long-term reliability.
Simple Installation
Immediate Results
Natural Warmth
Smooth, Detailed High
For more information, please hover over the dot.
5
5. 28mm (1.1 inch) fabric dome for detailed and smooth sound
6
6. Custom designed grill for optimized sound clarity
7
7. Integrated aluminum housing to minimize distortion
1
1. Concave paper dustcap for dispersion control
2
2. Paper membrane for smooth cone break up
3
3. Steel chassis for strength to minimize distortion
4
4. Outside Diameter 165mm (65 inch)
1. Concave paper dustcap for dispersion control
2. Paper membrane for smooth cone break up
3. Steel chassis for strength to minimize distortion
4. Outside Diameter 165mm (6.5 inch)
5. 28mm (1.1 inch) fabric dome for detailed and smooth sound
6. Custom designed grill for optimized sound clarity
7. Integrated aluminum housing to minimize distortion
SPECIFICATION
Tweeter
Weight
Outside Diameter
Housing
Moving Diameter
Membrane
Motor System
Nominal Impedance
Nominal Power
Frequency Response (+/- 3dB)
71 gram
53.5 mm
Integrated Aluminium
28 mm
Fabric Dome
Neodymium Magnet
4 Ω
50 - 75 Watt RMS
2 kHz - 20 kHz
71 gram
53.5 mm
Integrated Aluminium
28 mm
Fabric Dome
Neodymium Magnet
4 Ω
50 - 75 Watt RMS
2 kHz - 20 kHz

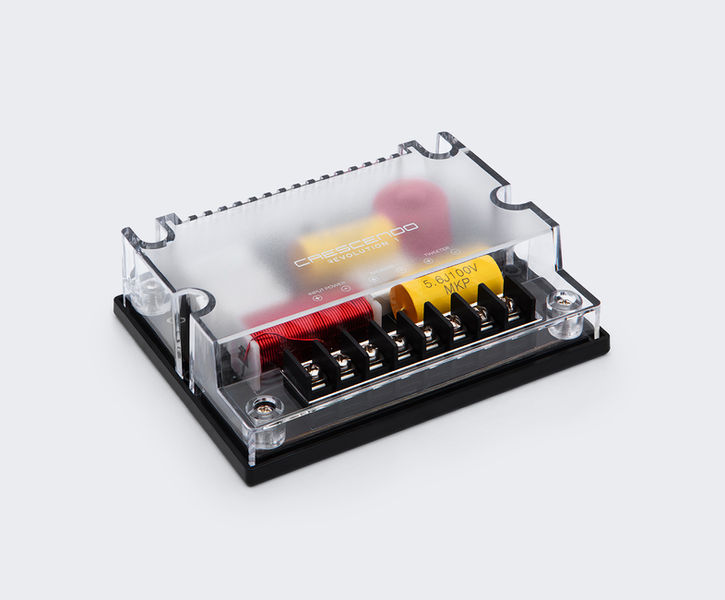

Passive Crossover
Type
High Pass
Low Pass
Impedance
-
-
-
-
Passive 2 Way
12 dB/Octave
6 dB/Octave
Compensation
Product Name
Crescendo Revolution 1S2 Active
Crescendo Revolution 1S2 Passive
Product Type
2-way Speaker System
2-way Speaker System
Midbass
Weight
Outside Diameter
Chasis
Moving Diameter
Membrane
Dust Cap
Motor System
Nominal Impedance
Nominal Power
Frequency Response (+/- 3dB)
879 gram
165 mm
Steel
132 mm
Paper
Concave Paper
Overhung with Ferrite Magnet
4 Ω
50 - 75 Watt RMS
60 Hz - 6 kHz
879 gram
165 mm
Steel
132 mm
Paper
Concave Paper
Overhung with Ferrite Magnet
4 Ω
50 - 75 Watt RMS
60 Hz - 6 kHz
