Performance
Without Compromise
REVOLUTION 5 SPEAKER SERIES
A rigid aluminum chassis keeps every driver stable and controlled. The 28mm fabric dome tweeter adds smooth, refined highs - delivering sound that stays detailed and musical at any volume.
Neodymium Motor System
Dynamic. Articulate. Accurate
Expressive Performance
For more information, please hover over the dot.
1
1. A.I designed a strong motor system
2
2. Rigid aluminum chassis
3
3. A.I designed a fiber glass membrane and dust cap
4
4. Custom designed grill for optimized sound clarity
5
5. Integrated aluminum grill
6
6. A.I designed a fiber glass membrane and dust cap
7
7. Rigid aluminum chassis
8
8. Neodymium Magnet
9

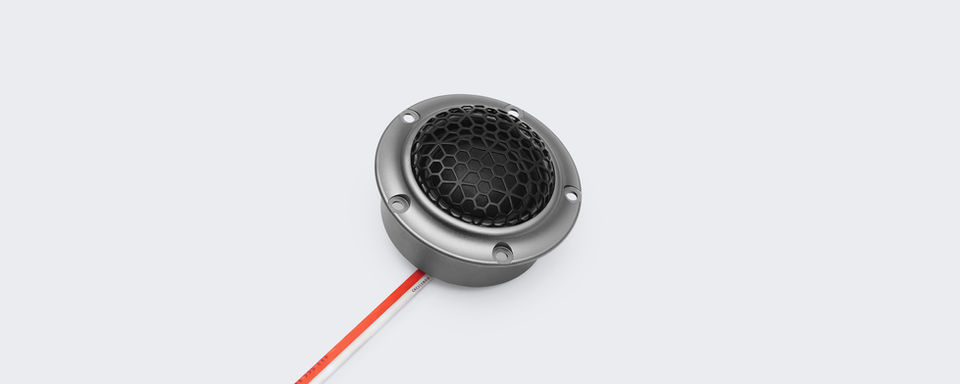

9. 28mm (1.1 inch) fabric dome
10
10. Threaded aluminum housing to strongly hold the tweeter
1. A.I designed a strong motor system
2. Rigid aluminum chassis
3. A.I designed a fiber glass membrane and dust cap
4. Custom designed grill for optimized sound clarity
5. Integrated aluminum grill
6. A.I designed a fiber glass membrane and dust cap
7. Rigid aluminum chassis
8. Neodymium Magnet
9. 28mm (1.1 inch) fabric dome
10. Threaded aluminum housing to strongly hold the tweeter
SPECIFICATION
Product Name
Crescendo Revolution 5S3
Crescendo Revolution 5S2
Product Type
3-way Speaker System
2-way Speaker System
Midbass
Weight
Outside Diameter
Chasis
Moving Diameter
Membrane
Dust Cap
Motor System
Nominal Impedance
Nominal Power
Frequency Response (+/- 3dB)
1358 gram
165 mm
Aluminum
132 mm
Fiber Glass
Concave Fiber Glass
Overhung with Ferrite Magnet
4 Ω
50 - 100 Watt RMS
50 Hz - 8 kHz
1358 gram
165 mm
Aluminum
132 mm
Fiber Glass
Concave Fiber Glass
Overhung with Ferrite Magnet
4 Ω
50 - 100 Watt RMS
50 Hz - 8 kHz
Midrange
Weight
Outside Diameter
Chasis
Moving Diameter
Membrane
Dust Cap
Motor System
Nominal Impedance
Nominal Power
Frequency Response (+/- 3dB)
238 gram
100 mm
Aluminum
61 mm
Fiber Glass
Concave Fiber Glass
Neodymium Magnet
4 Ω
50 - 100 Watt RMS
250 Hz - 8 kHz
-
-
-
-
-
-
-
-
-
-
Tweeter
Weight
Outside Diameter
Housing
Moving Diameter
Membrane
Motor System
Nominal Impedance
Nominal Power
Frequency Response (+/- 3dB)
118 gram
57.5 mm
Aluminum
28 mm
Fabric Dome
Neodymium Magnet
4 Ω
50 - 100 Watt RMS
2 kHz - 20 kHz
118 gram
5.7 mm
Aluminum
28 mm
Fabric Dome
Neodymium Magnet
4 Ω
50 - 100 Watt RMS
2 kHz - 20 kHz
REVOLUTION SPEAKER SERIES
